Parking Brake

  1. 1 - Parking brake contact switch -F321-
    • In center console
  2. 5 - Right parking brake motor -V283-
  3. 6 - Electromechanical parking brake control module J540
  4. 7 - Left parking brake motor -V282-

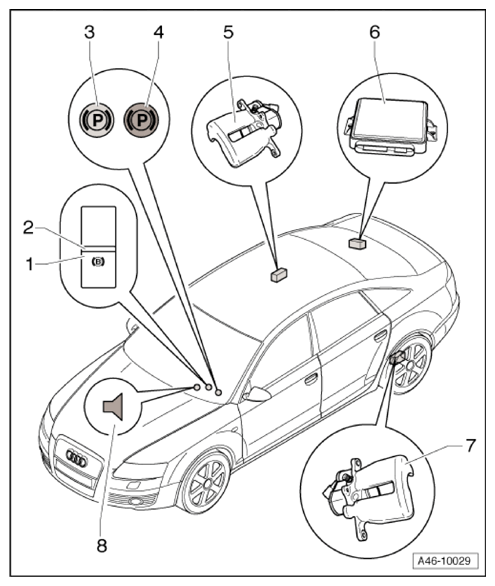

G12766953Courtesy of AUDI OF AMERICA, LLC
