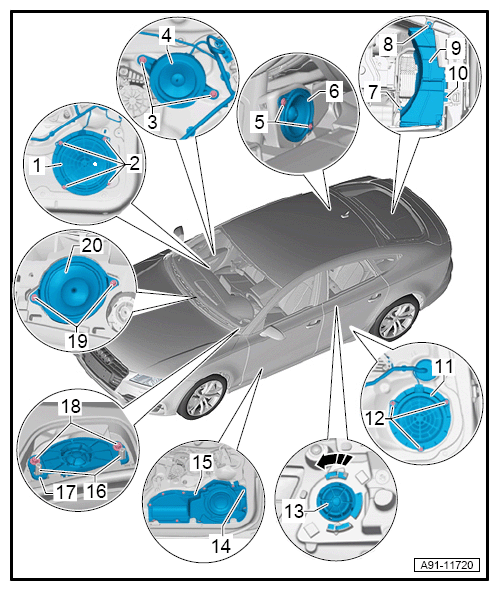

Comp. LOC. Radio: BOSE®
- 1 - Left front bass speaker -R21-
- 1 - Right front bass speaker -R23- similar.
- 4 - Left front midrange speaker -R103-
- 4 - Right front midrange speaker -R104- similar.
- 6 - Left effects speaker -R209-
- 6 - Right effects speaker -R210- similar.
- 9 - Subwoofer -R211-
- 11 - Left rear mid-bass speaker -R159-
- 11 - Right rear mid-bass speaker -R160- similar.
- 13 - Left rear treble speaker -R14-
- 13 - Right rear treble speaker -R16- similar.
- 14 - Left front bass speaker -R21-
- 14 - Right front bass speaker -R23- similar
- 17 - Left front treble speaker -R20-
- 17 - Right front treble speaker -R22- similar.
- 20 - Center speaker -R208-
