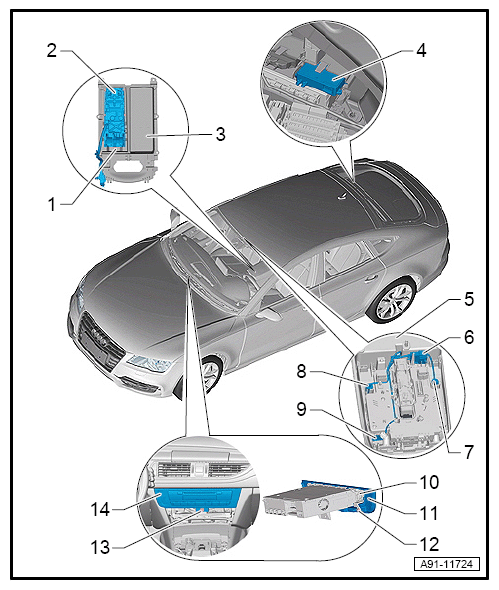

Comp. LOC. Radio: Telephone

1. 1 - Telephone baseplate -R126-
   • if equipped
2. 4 - Cellular telephone amplifier -R86-
   • if equipped
3. 7 - Left front microphone -R140-
4. 8 - Right front microphone -R141-
5. 9 - Interior microphone -R74-
6. 14 - Information electronics control module 1 J794

Courtesy of AUDI OF AMERICA, LLC
