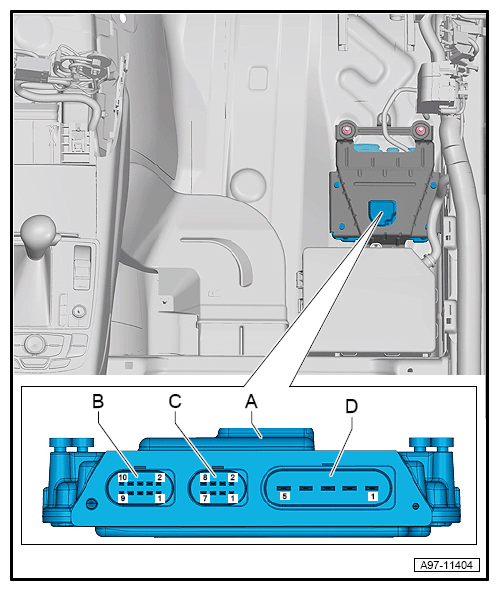

Active Steering Control Module -J792-, Connector Views, RHD
10-Pin Connector -T10c-/8-Pin Connector -T8m-/5-Pin Connector -T5k-
- B - 10-Pin Connector -T10c-, black
- C - 8-Pin Connector -T8m-, black
- D - 5-Pin Connector -T5k-, black
 Courtesy of AUDI OF AMERICA, LLC
|
