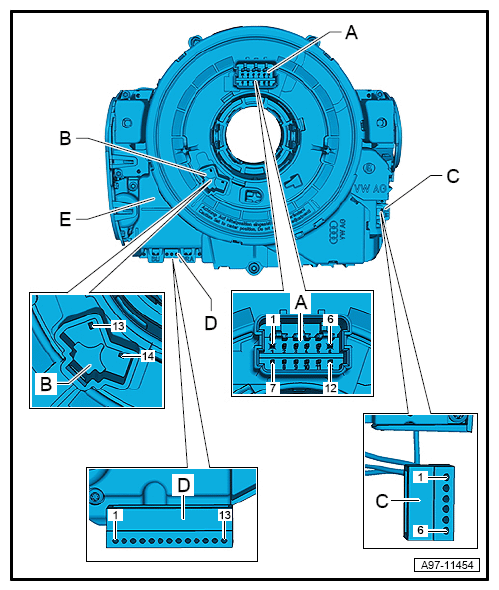

Steering Column Electronic Systems Module -J527-, Connector Views, Front View

12-Pin Connector -T12v-/Double Connector -T2fk-/6-Pin Connector -T6am-/13-Pin Connector -T13b-

  1. 12-Pin Connector -T12v-, black
  2. Double Connector -T2fk-, black
  3. 6-Pin Connector -T6am-, black
  4. 13-Pin Connector -T13b-, black
G12768131Courtesy of AUDI OF AMERICA, LLC
