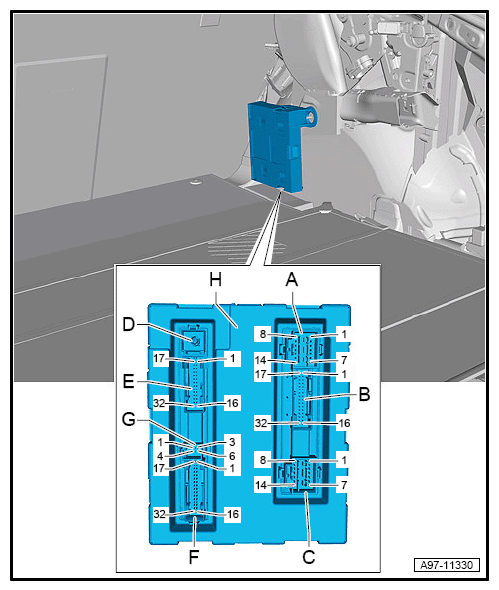

Comfort System Central Control Module J393

1. 17-Pin Connector -T17s-, black
2. 32-Pin Connector -T32i-, black
3. 17-Pin Connector -T17r-, brown
4. Double Connector -T2co-
5. 32-Pin Connector -T32g-, grey
6. 32-Pin Connector -T32h-, blue
7. Not used
8. Comfort System Central Control Module -J393-

Courtesy of AUDI OF AMERICA, LLC
