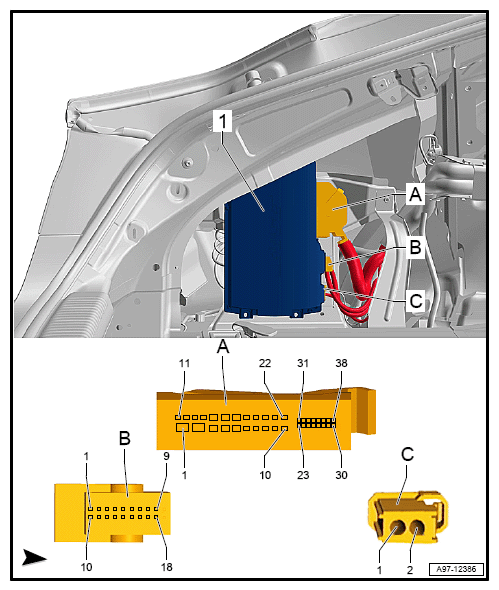

Digital Sound System Control Module -J525-, Location

1. 1 - Digital Sound System Control Module -J525-
2. A - 38-Pin Connector -T38-, black
3. B - 18-Pin Connector -T18i-, black
4. C - Double Connector -T2ca-, MOST-Bus, black

Courtesy of AUDI OF AMERICA, LLC
