Electrical Components Locations & Connector End Views
›
Comp. LOC. Vehicle Rear Modules
›
Fuel Pump (FP) Control Module J538
›

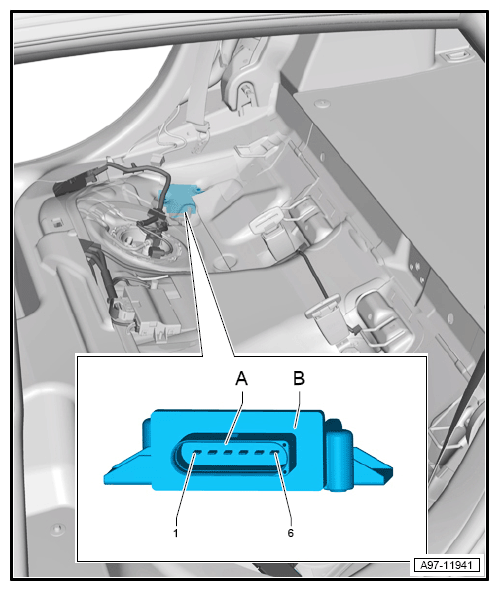

Fuel Pump (FP) Control Module -J538-, Location
Fuel Pump (FP) Control Module -J538-, Location
6-Pin Connector -T6ar-, black
Fuel Pump (FP) Control Module -J538-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
