Data Bus On Board Diagnostic Interface -J533- Overview

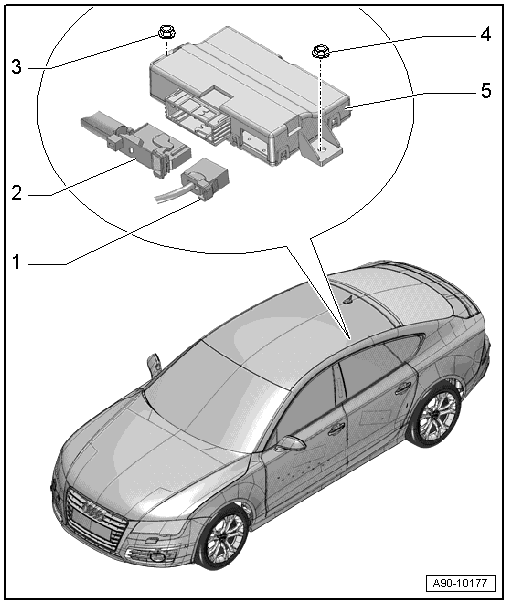

Fig 1: Overview Of Data Bus On Board Diagnostic Interface -J533-

Courtesy of AUDI OF AMERICA, LLC

1. Fiber Optic Cable Connector
   • Attach with the Cable connector protective cap VAS 6223/9.
2. Electrical Connector
   • For the data bus on board diagnostic interface.
3. Nut
   • 2 Nm
4. Nut
   • 2 Nm
5. Data Bus On Board Diagnostic Interface -J533-
   • Removing and installing, refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533- .
   • Multi-pin connector pin assignment, refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE, MULTI-PIN CONNECTOR ASSIGNMENT .
