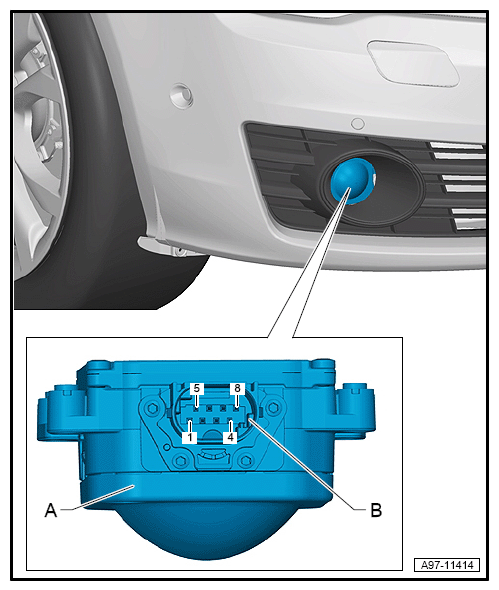

Distance Regulation Module -J428-, Connector Views
Distance Regulation Module -J428-, Connector Views
8-Pin Connector -T8k-
B - 8-Pin Connector -T8k-, black
Courtesy of AUDI OF AMERICA, LLC
