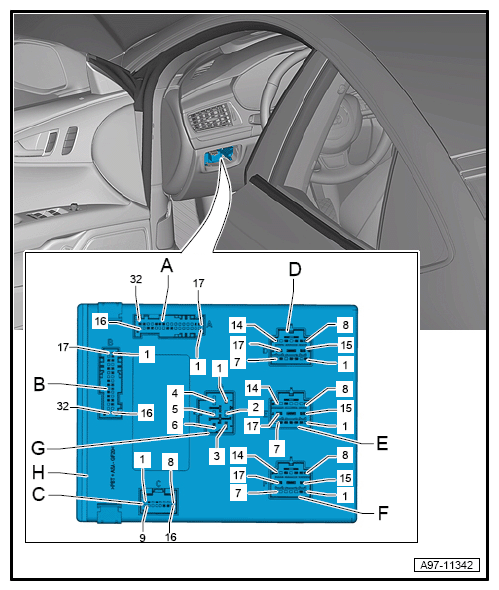

Vehicle Electrical System Control Module -J519-, LHD

1. 32-Pin Connector -T32c-, grey
2. 32-Pin Connector -T32a-, black
3. 16-Pin Connector -T16c-, brown
4. 17-Pin Connector -T17d-, black
5. 17-Pin Connector -T17c-, brown
6. 17-Pin Connector -T17e-, red
7. 6-Pin Connector -T6d-, grey
8. Vehicle Electrical System Control Module -J519-

Courtesy of AUDI OF AMERICA, LLC
