Rear View Camera System Control Module -J772-, Connector Views, My 2016

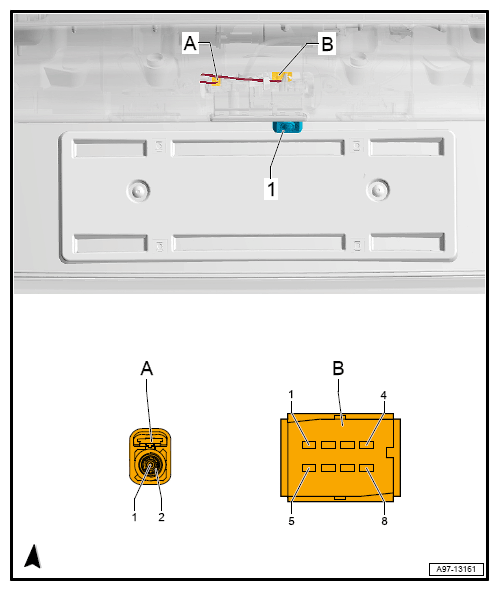

- 8-pin connector -T8bg-
| T8bg (A) | Designation |
|---|---|
| 1 | Terminal 15, from Fuse Carrier 1 ST1 in Fuse panel SB |
| 2 | |
| 3 | |
| 4 | CAN bus Extended High, for B108 Connection 1 (CAN bus Extended High) in the main wiring harness |
| 5 | Terminal 31, to the 51 ground point in the trunk right |
| 6 | |
| 7 | |
| 8 | CAN bus Extended Low, for B109 Connection 1 (CAN bus Extended Low) from the main wiring harness |
