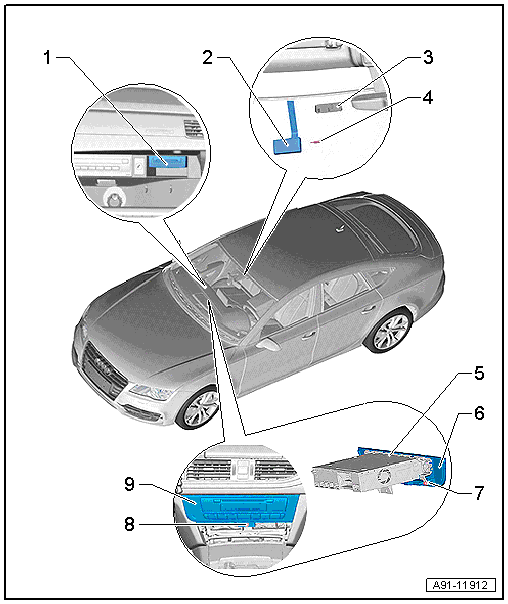

Component Location Overview - Navigation System, Japan, Through My 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Chip Card Reader Control Module -J676-
- Connector Assignment. Refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENT, THROUGH MY 2014 .
- Removing and Installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
- Traffic Data Antenna -R173-
- Removing and Installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
- Bracket
- Glued to the windshield
- Safety piece
- Information Electronics Control Module 1 -J794-
- Trim
- Bolt
- Quantity: 4
- 1 Nm
- Bolt
- 3 Nm
- Information Electronics Control Module 1 -J794-
- Connector Assignment, Navigation plus 7T6. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
