Rear Peripheral Camera -R246-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
The Rear Peripheral Camera -R246- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.
-- Remove the lower rear lid trim panel. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

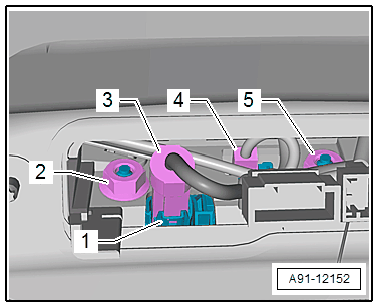

-- Release and disconnect the connectors -3 and 4- from the rear lid handle button.
The Rear Peripheral Camera -R246- -1- is permanently attached to the handle button.
-- Remove the nuts -2 and 5-.
-- Pull the handle button with the Rear Peripheral Camera -R246- -1- out of the retainer in the rear lid.
