Component Location Overview - Rearview Camera System
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

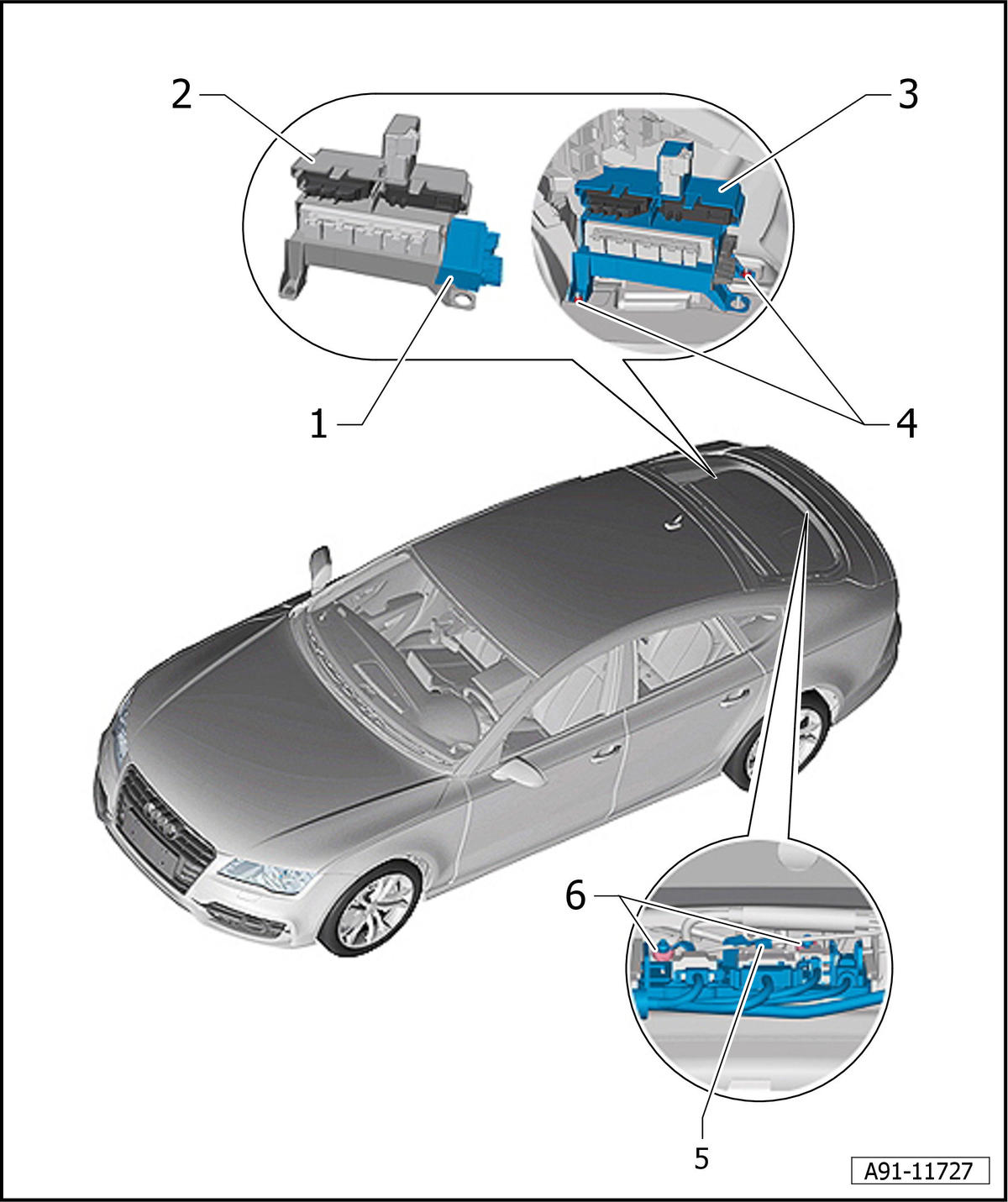

- Rearview Camera System Control Module -J772-, through MY 2016
- Connector Assignment. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Rack
- Rack
- Nut
- 3 Nm
- Quantity: 2
- Rearview Camera -R189-, in the Handle Button
- With Rearview Camera System Control Module -J772-, from MY 2017
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Nut
- 6 Nm
- Quantity: 2
