Subwoofer -R211-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the luggage compartment floor.

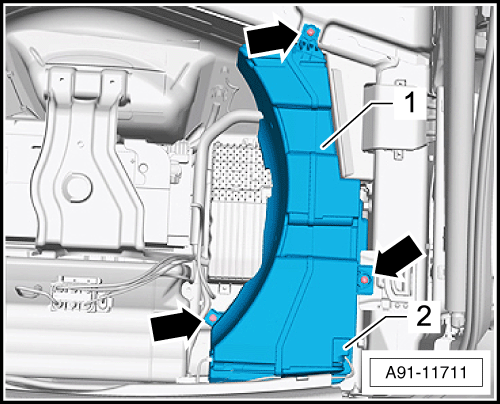

-- Remove the screws and nuts -arrows- on the Subwoofer -R211- -1-.
-- Release and disconnect the connector -2- from the Subwoofer -R211- -1-.
-- Remove the Subwoofer -R211- -1- upward.
