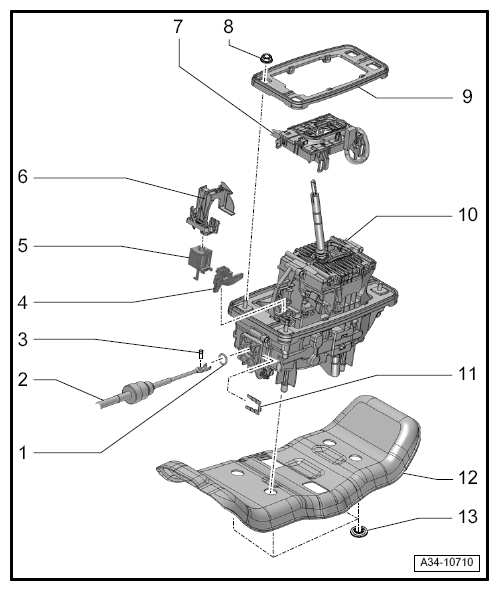

Selector Lever Assembly

  1. 4 - Transmission park selector switch -F305-
  2. 5 - Shift lock solenoid -N110-
  3. 7 - Selector lever sensor system control module -J587-
  4. 7 - Tiptronic switch -F189-
G12770235Courtesy of AUDI OF AMERICA, LLC
