Overview - Front Axle Speed Sensor

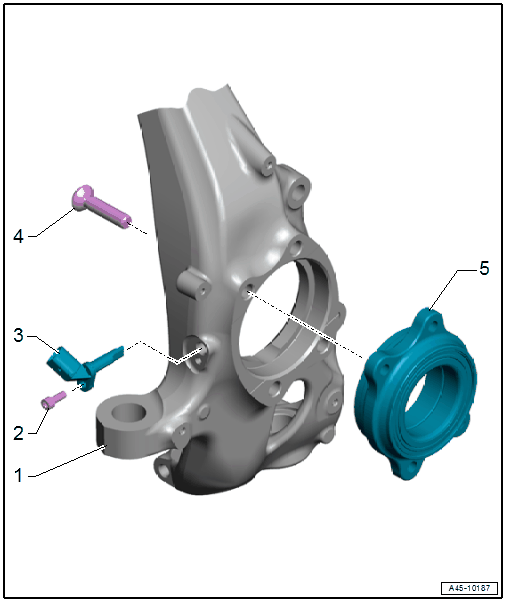

Fig 1: Overview Of Front Axle Speed Sensor

Courtesy of AUDI OF AMERICA, LLC

1. Wheel Bearing Housing
2. Bolt
   • 9 Nm
3. Wheel Speed Sensor
   • Right Front ABS Wheel Speed Sensor -G45- /Left Front ABS Wheel Speed Sensor -G47-
   • Removing and installing, refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
4. Bolt
   • Tightening specifications, refer toWheel Bearing .
5. Wheel Bearing Housing
