Right Engine Mount, Removing And Installing: Removing

Fig 1: Identifying Upper Right Longitudinal Member -2-
GWWA10-11207Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the left and right upper longitudinal member -2-, refer to Lock Carrier .

-- Remove the right air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the generator, refer to Generator .

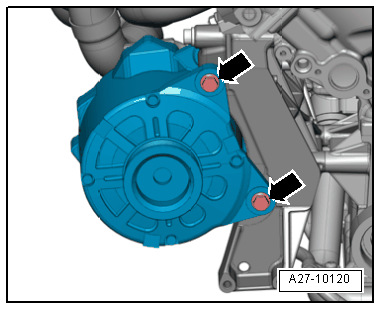

Fig 2: Identifying Bolts
GWWA27-10120Courtesy of AUDI OF AMERICA, LLC

-- Position the Engine Support Bridge10-222A with Engine Support BracketsT40093/7, Engine Support BracketsT40093/8, T40091/3, T40091/4, T40091/5, and T40091/6 on the left and right suspension strut towers as illustrated.

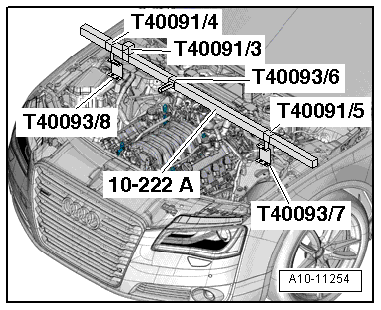

Fig 3: Positioning Engine Support Bridge 10-222A With Engine Support Brackets
GWWA10-11254Courtesy of AUDI OF AMERICA, LLC

-- Mount the additional tools Engine Support - Bracket w/Spindle and Hook10-222A/10, T40091/1, T40091/3 and T40093/4 shown in the illustration.

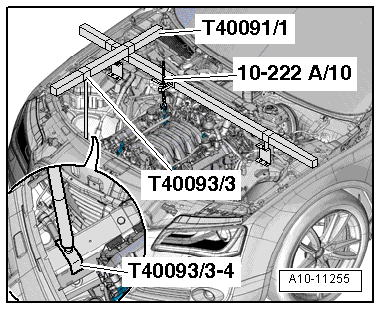

Fig 4: Mounting Additional Tools To Engine Support Bridge
GWWA10-11255Courtesy of AUDI OF AMERICA, LLC

-- Attach the Engine Support - Bracket w/Spindle and Hook10-222A/10 to the right engine lifting eye and pretension the engine slightly.

-- Disconnect the connector -2- from the Right Electrohydraulic Engine Mount Solenoid Valve -N145- and free up the wire.

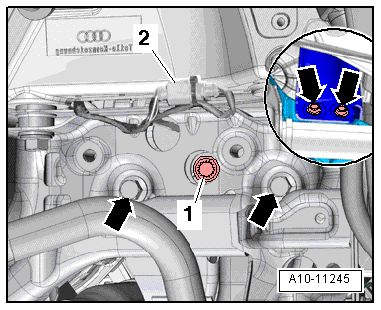

Fig 5: Identifying Right Retaining Plate Bolts
GWWA10-11245Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine support retaining plate bolts -1 and 4- and -arrows-.

-- Free up the electrical wiring harness located on the right engine mount retaining plate -3-.

-- Move the engine mount retaining plate to the side.

-- Lift the engine using the Engine Support - Bracket w/Spindle and Hook10 - 222 A /10 -1- to dimension -a-.

Fig 6: Identifying Special Tool - 10 - 222 A /11
GWWA10-10928Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine mount.
