Engine, Securing On Engine And Transmission Holder

Special tools and workshop equipment required

• Lifting Tackle3033
• Engine And Transmission HolderVAS6095 with Engine/Transmission Holder - V8 Engine Bracket VAS6095/1-6A
• Shop CraneVAS6100
• Lift Arm ExtensionVAS6101
• Hose Clip PliersVAS6362

Procedure

• Engine/transmission subassembly removed; engine and transmission separated, refer to ENGINE AND TRANSMISSION, SEPARATING .
• Engine secured with Joint SupportVAS6131/13-7.

-- Disconnect the connector -1-.

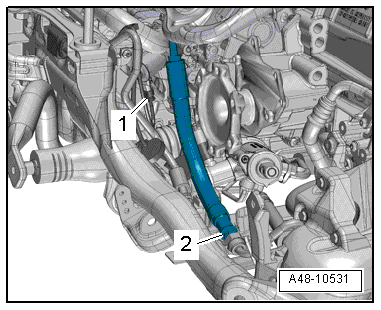

-- Disconnect the power steering hydraulic pipe -2-.

-- Remove the bolts -1 and 2-.

-- Free up the wire on the left coolant pipe in the center.

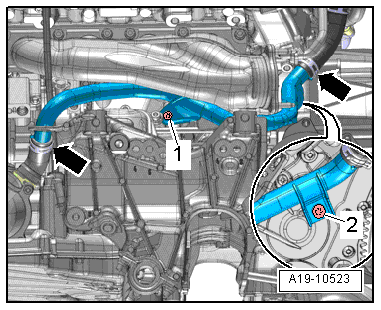

-- Loosen the clamps -arrows-, remove the bolts -1 and 2- and remove the left coolant pipe in the center from the coolant hoses.

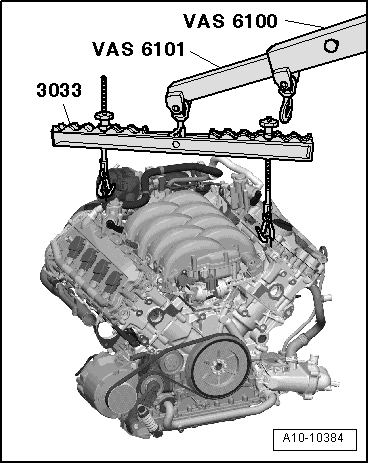

-- Engage the Lifting Tackle3033 on the engine lifting eyes and on the shop crane as shown in the illustration.

-- Tension engine slightly with shop crane, do not raise.

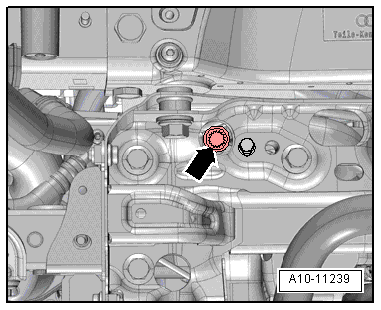

-- Remove the bolt -arrow- from the left engine mount.

-- Remove the right engine mount bolt -1-.

-- Remove the Joint SupportVAS6131/13-7 from the engine.

-- Raise engine from engine carrier.

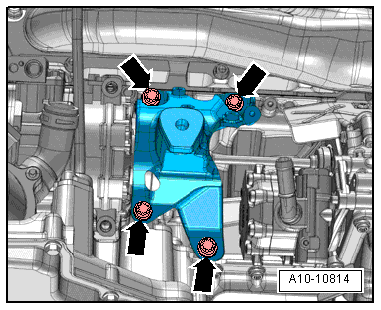

-- Remove the bolts -arrows- and remove the left engine support.

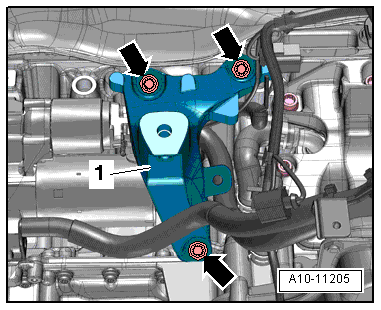

-- Remove the bolts -arrows- and remove the right engine support -1-.

-- Secure the starter on the engine.

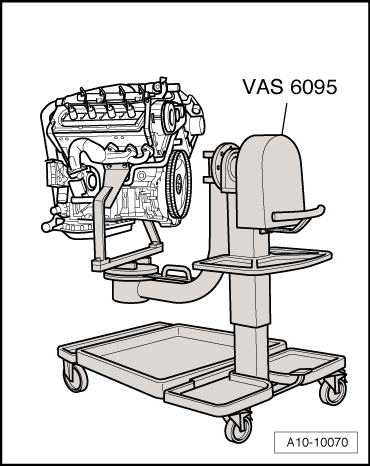

-- Attach the engine using the Engine/Transmission Holder - V8 Engine Bracket VAS6095/1-6A to the Engine And Transmission HolderVAS6095 to 55 Nm, as shown in the illustration.
