Engine Number/Engine Characteristics
Engine Number
NOTE:
The engine number only visible with the engine removed.

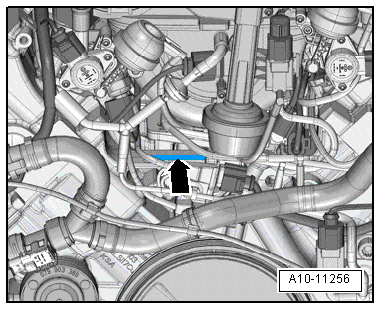

- Engine number ("engine code" and "serial number") is located at front on cylinder block at top -arrow-.
- Engine codes beginning with "C" are four-digit.
- The first three digits of the engine code stand for displacement and the mechanical structure of the engine. They are stamped in the cylinder block, including the serial number.
- The 4th digit describes the engine output and torque and depends on the engine control module.
NOTE:
The four digit engine code is on the type plate, vehicle data label and engine control module.
For the location of the type plate and vehicle data label, refer to => 410Vehicle Data Label.
Engine Data
| Code letters | CDRA | |
|---|---|---|
| Displacement | liter | 4.163 |
| Output | kW at RPM | 273/6800 |
| Torque | Nm at RPM | 445/3500 |
| Bore | diameter in mm | 84.5 |
| Stroke | mm | 92.8 |
| Compression ratio | 12.5 | |
| RON | at least | 98 1) |
| Fuel injection and ignition system | Bosch Motronic | |
| Ignition sequence | 1-5-4-8-6-3-7-2 | |
| Turbocharger | no | |
| Knock control | 4 sensors | |
| Oxygen sensor regulation | 2 sensors before catalytic converter 2 sensors after catalytic converter | |
| Variable valve timing | Intake Exhaust | |
| Variable intake manifold | yes | |
| Secondary Air Injection (AIR) System | yes | |
| Valve per cylinder | 4 | |
|
||
