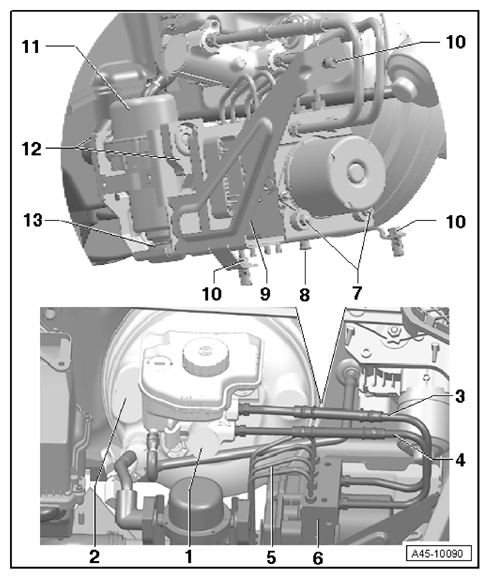

Abs Hydraulic Unit And Control Module: Overview
- 6
- ABS Hydraulic Unit -N55-
- Component Location: In The Front Left Of The Luggage Compartment
- 6 - ABS Control Module -J104-
- 6 - Brake Pressure Sensor 1 -G201-
- 6 - Right Front ABS Inlet Valve -N99-
- 6 - Right Front ABS Outlet Valve -N100-
- 6 - Left Front ABS Inlet Valve -N101-
- 6 - Left Front ABS Outlet Valve -N102-
- 6 - Left Front ABS Outlet Valve -N102-
- 6 - Right Rear ABS Inlet Valve -N133-
- 6 - Left Rear ABS Inlet Valve -N134-
- 6 - Right Rear ABS Outlet Valve -N135-
- 6 - Left Rear ABS Outlet Valve -N136-
- 6 - Driving Dynamics Regulation Switch Valve 1 -N225-
- 6 - Driving Dynamics Regulation Switch Valve 2 -N226-
- 6 - Driving Dynamics Regulation High Pressure Switch Valve 1 -N227-
- 6 - Driving Dynamics Regulation High Pressure Switch Valve 2 -N228-
- 6 - ABS Hydraulic Pump -V64-
- 11
- Brake System Vacuum Pump -V192-
4 - Brake Booster Pressure Sensor -G294-
