Electrical Components Locations & Connector End Views -- R8
›
Comp. LOC. Engine
›

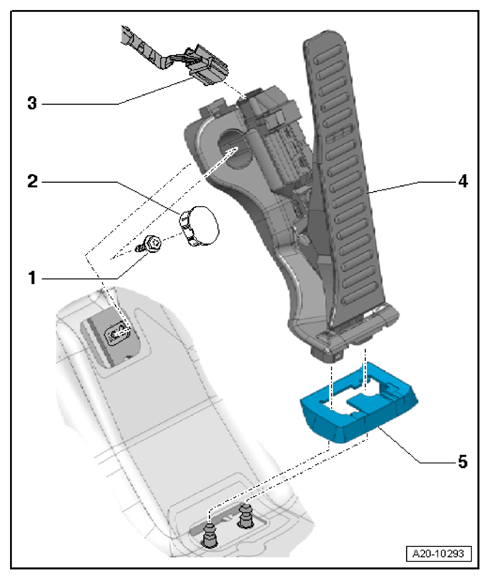

Accelerator Pedal Module
Accelerator Pedal Module
4
- Throttle Position (TP) Sensor -G79-
4
- Accelerator Pedal Position Sensor 2 -G185-
Courtesy of AUDI OF AMERICA, LLC
