Airbag Control Module -J234-

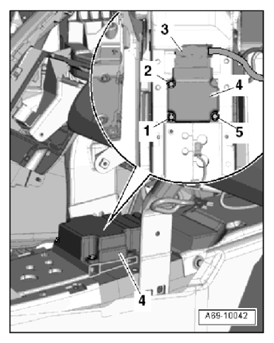

Component Location

Under Centre Console On Tunnel -4-.

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

1. 75-Pin Connector -T75-, Yellow

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → OVERVIEW OF CONTROL MODULES  .
