Convertible Top Control Module -J256-

Component Location

Behind The Left Rear Wall -1-.

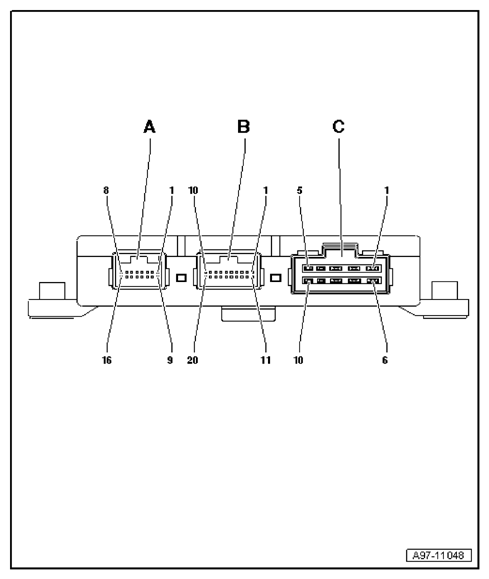

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

1. 16-Pin Connector -T16H-, Black
2. 20-Pin Connector -T20G-, Black
3. 10-Pin Connector -T10M-, Black

Courtesy of AUDI OF AMERICA, LLC

Back To Overview  → OVERVIEW OF CONTROL MODULES  .
