Electronic Damping Control Module -J250-

Component Location

Below Right Parcel Shelf -1-, Coupe.

Behind The Right Rear Wall -1-, Spyder.

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

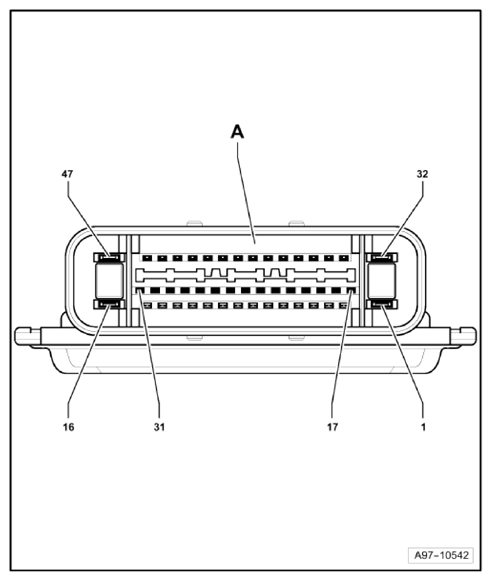

1. 47-Pin Connector -T47-, Black

Courtesy of AUDI OF AMERICA, LLC
