Transmission Control Module (TCM) -J217-

Component Location

Below Right Parcel Shelf -Arrow-, Coupe.

Behind The Right Rear Wall -Arrow-, Spyder.

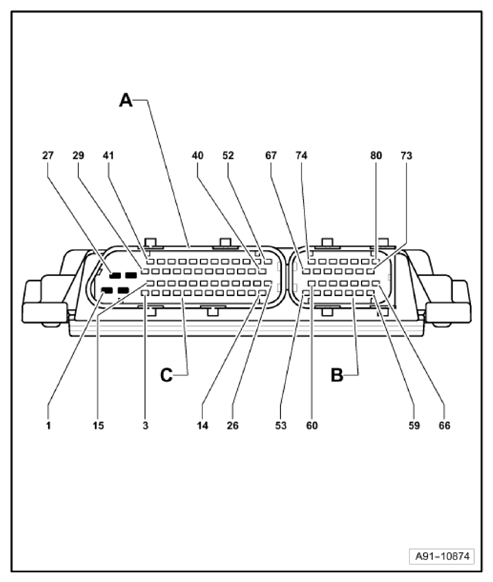

Pin Arrangements

Courtesy of AUDI OF AMERICA, LLC

1. Transmission Control Module (TCM) -J217-, Automatic Gearbox 086, Rtronic
2. 28-Pin Connector -T28-, Black
3. 52-Pin Connector -T52-, Black

Courtesy of AUDI OF AMERICA, LLC
