Front Abs Wheel Speed Sensor Assembly Overview

NOTE:

The ABS sensor ring/rotor is installed in the respective wheel bearing unit and should not be replaced. Refer to Description and Operation .

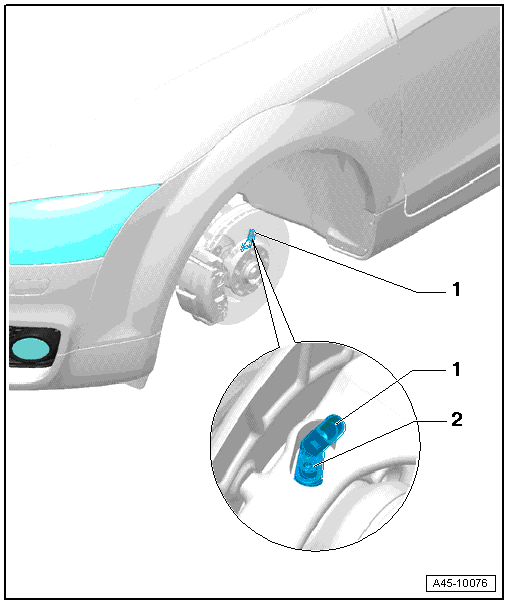

Fig 1: Disconnecting Brake Pad Wear Indicator Connector
