Engine Control Module (ECM) Connector End View (J623, T94, T60)

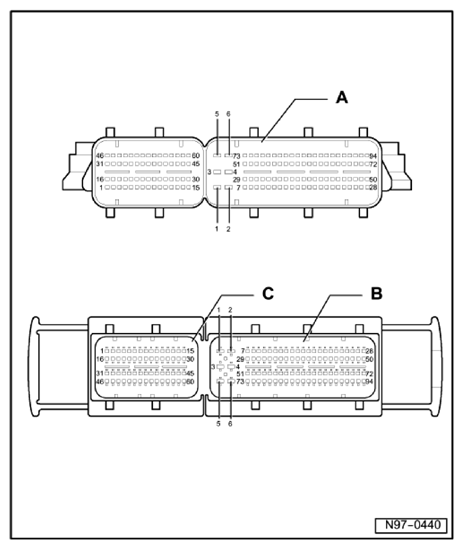

Fig 1: Engine Control Module (ECM) Connector End View (J623, T94, T60)
G10359861
A Engine Control Module (ECM) -J623-
B 94-Pin Connector -T94-, black on wiring harness
C 60-Pin Connector -T60-, black on wiring harness
