Headlamp Range Control Module Connector End View (J431, T26a)
Headlamp Range Control Module Connector End View (J431, T26a)

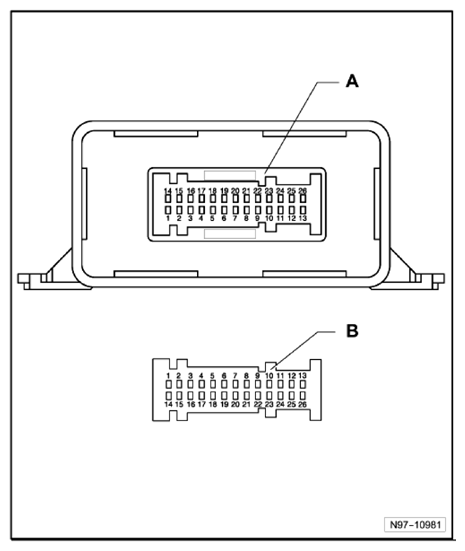

Fig 1: Headlamp Range Control Module Connector End View (J431, T26a)
A
Headlamp Range Control Module -J431-
B
26-Pin Connector -T26a-, black on wiring harness
