Radio Frequency Controlled Clock Receiver, Removing And Installing: Removing

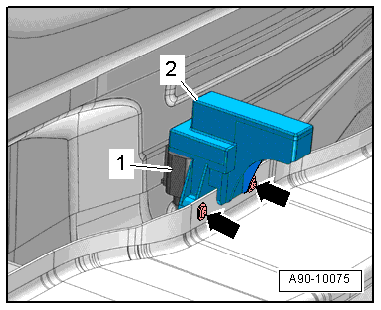

Fig 1: Radio Frequency Controlled Clock Receiver -J489-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the Radio Frequency Controlled Clock Receiver -J489- -item 2-.

-- Disconnect the connector -1- on the Radio Frequency Controlled Clock Receiver -J489-.
