Section 105 (Anti-Theft System - Security And Locks)
›
General Description
›
Components With Torque Specifications
›
Rear Gate Lock
Rear Gate Lock
WARNING:
This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

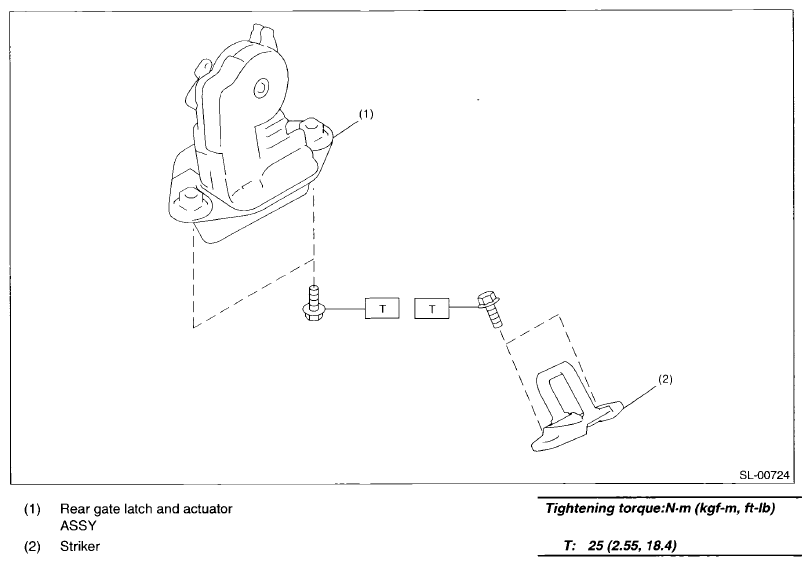

Fig 1: Rear Gate Latch And Actuator Assembly And Striker
Courtesy of SUBARU OF AMERICA, INC.
