Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

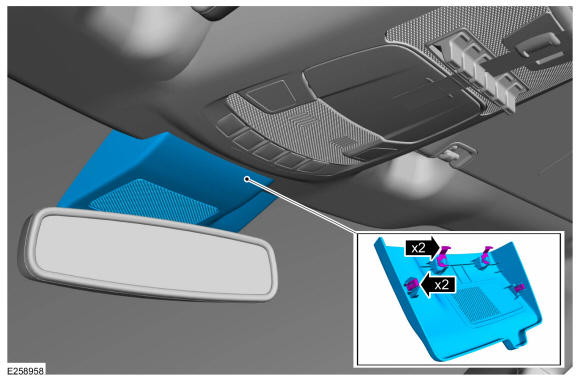

  2. Release the clips and remove the IPMA cover.
    GFD274720Courtesy of FORD MOTOR COMPANY

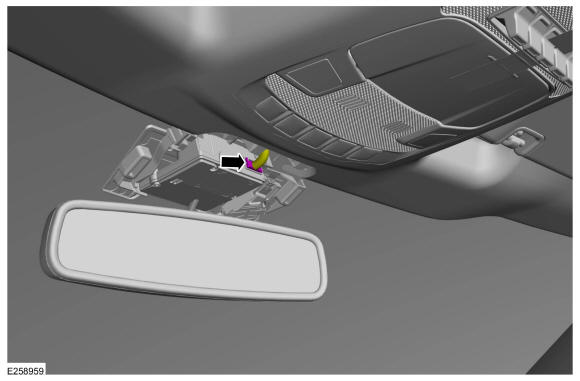

  3. Disconnect the electrical connector.
    GFD274721Courtesy of FORD MOTOR COMPANY

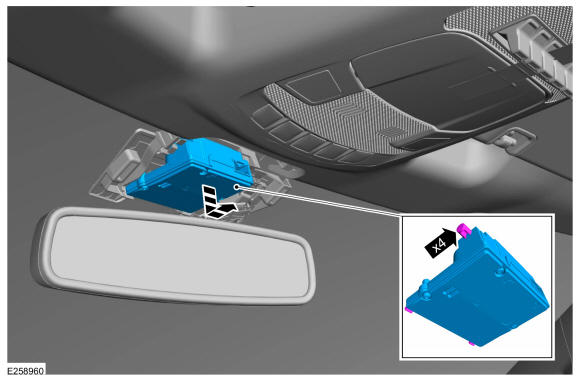

  4. Release the tabs, remove the IPMA.
GFD274722Courtesy of FORD MOTOR COMPANY
