Knock Sensor, Removing And Installing: Removing

-- Remove the supercharger, refer to SUPERCHARGER, REMOVING AND INSTALLING .

-- Remove the connector -3- on cylinder bank 1 from the retainer.

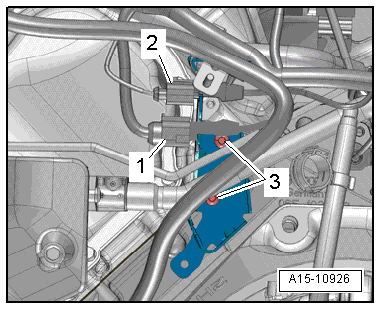

Fig 1: Electrical Connectors On Right Rear of Engine

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for Knock Sensor 1 -G61- from the bracket and disconnect it.

NOTE:

Ignore item -1-.

-- Remove the connector -2- on cylinder bank 2 for Knock Sensor 2 -G66- and disconnect it.

Fig 2: Electrical Connectors On Left Rear Of Engine

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -1 and 3-.

-- Remove the screw -1- for Knock Sensor 1 -G61- or the bolt -2- for the Knock Sensor 2 -G66- and then remove the knock sensor.

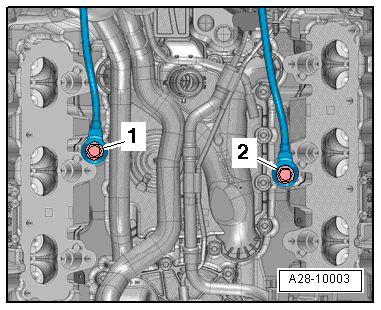

Fig 3: Identifying Bolt -1- For KS 1 And Bolt -2- For KS 2

Courtesy of AUDI OF AMERICA, LLC
