Windshield Wiper Motor With Wiper Motor Control Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Observe notes on contact corrosion CONTACT CORROSION .

Removal

-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS .

-- Remove the plenum chamber cover and cowl panel trim. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING and COWL, REMOVING AND INSTALLING .

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK .

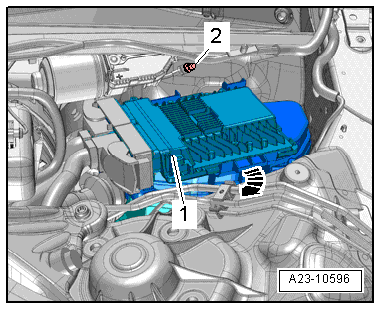

-- Release the retainer -arrow-, remove the engine control module -1- and move it to the side with the wires still connected.

Fig 1: Engine Control Module -J623- Component Location

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Disregard item -2-.

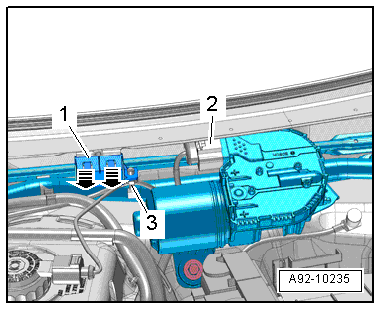

-- Disconnect the connector -2- and free up the wiring harness -3-.

Fig 2: Disconnecting Connector -2- And Free Up Wiring Harness -3-

Courtesy of AUDI OF AMERICA, LLC

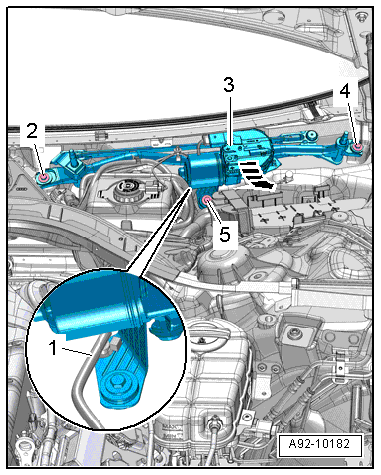

-- Open the retainers -arrows- and remove the mount -1- downward.

-- Remove the screws -2, 4 and 5-.

Fig 3: Locating Screws

Courtesy of AUDI OF AMERICA, LLC

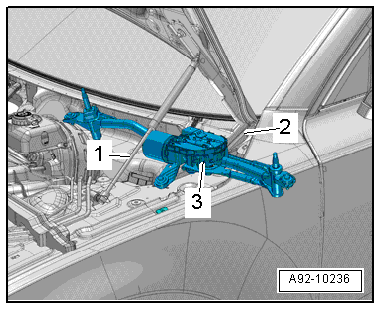

-- Move the windshield wiper frame -3- with the linkage and windshield wiper motor slightly forward -arrow-.

-- Free up the wiring harness -1- on the windshield wiper frame.

-- Remove the windshield wiper frame -3- with the linkage and windshield wiper motor from the plenum chamber between the gas-filled strut -1- and the hood hinge -2-.

Fig 4: Identifying Windshield Wiper Frame -3-, Gas-Filled Strut -1- And Hood Hinge -2-

Courtesy of AUDI OF AMERICA, LLC

Installation

Tightening specification, refer to Windshield Wiper Motor, Tightening Specifications and Sequence .

Install in reverse order of removal, observing the following:

-- Install the windshield wiper motor and the windshield wiper frame.

-- Tighten bolts, refer to Windshield Wiper Motor, Tightening Specifications and Sequence .

-- Press the cowl panel trim mount onto the body until it clicks into place.

-- Install the engine control module. Refer to ENGINE CONTROL MODULE (CEUC And CRDB), ENGINE CONTROL MODULE (CGXB and CTUA) or ENGINE CONTROL MODULE (CPNB) .

-- Install the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK .

-- Install the cowl panel and plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING and COWL, REMOVING AND INSTALLING .

-- Adjust the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
