Overview - ATF Circuit

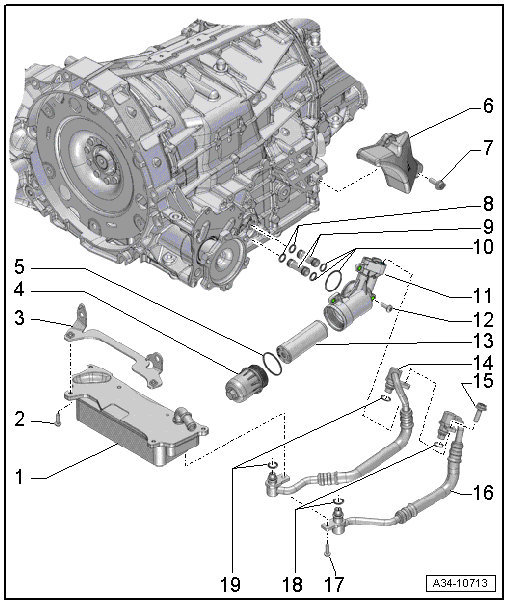

Fig 1: Identifying ATF Circuit Overview

Courtesy of AUDI OF AMERICA, LLC

1. ATF Cooler
   • Refer to ATF COOLER, REMOVING AND INSTALLING
2. Bolt
   • 9 Nm
3. Bracket
   • For the ATF cooler
4. Cover
   • 8 Nm
   • For the replaceable ATF filter
   • Different versions depending on the date of manufacture, pat attention to the correct allocation.
5. O-Ring
   • Replacing
   • Coat with ATF before installing
6. Cover
7. Bolt
   • 20 Nm
8. O-Rings
   • Are replaced together with the ATF pipe (-item  9-)
   • Coat with ATF before installing
9. ATF Pipes
   • Replacing, refer to ATF FILTER HOUSING, REMOVING AND INSTALLING .
10. O-Rings
    • Replacing
    • Coat with ATF before installing
11. For the Replaceable ATF Filter Housing
    • Different versions depending on the date of manufacture, pat attention to the correct allocation.
    • Refer to ATF FILTER HOUSING, REMOVING AND INSTALLING
12. Bolt
    • 10 Nm
13. ATF Filter
    • Refer to ATF FILTER, REMOVING AND INSTALLING
14. ATF Pipe/Hose Line
    • Replacing, refer to ATF PIPES, REMOVING AND INSTALLING .
    • Cleaning, refer to Clean .
15. Bolt
    • 20 Nm
16. ATF Pipe/Hose Line
    • Replacing, refer to ATF PIPES, REMOVING AND INSTALLING .
    • Cleaning, refer to Clean .
17. Bolt
    • 8 Nm
18. O-Rings
    • Replacing
    • Coat with ATF before installing
19. O-Rings
    • Replacing
    • Coat with ATF before installing

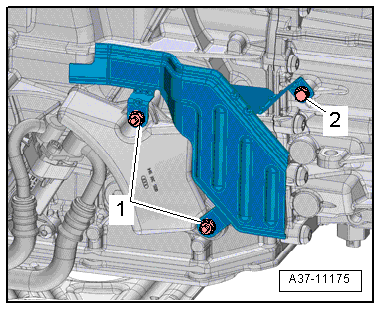

Fig 2: Heat Shield, Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -2- and nut -1- to 9 Nm.
