Overview - Selector Lever Cable

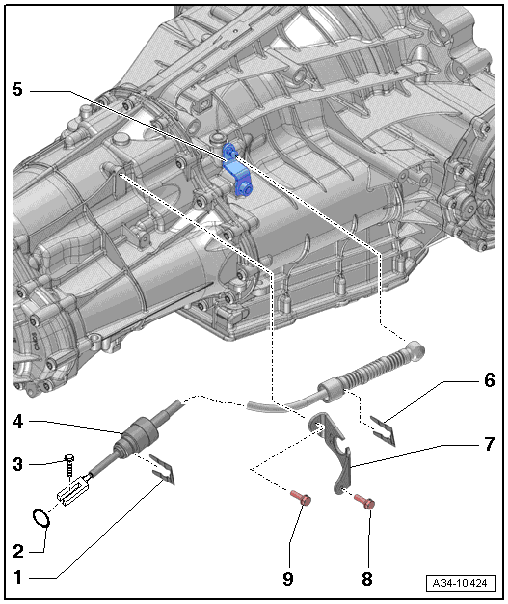

Fig 1: Identifying Selector Lever Cable Overview

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • For the selector lever cable on the selector mechanism function unit
2. O-Ring
   • Replacing
3. Bolt
   • 13 Nm
   • For selector lever cable adjustment
4. Selector Lever Cable
   • Do not bend
   • Different versions depending on the vehicle; Use the correct allocation.
   • Removing and installing, refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .
   • The selector lever cable must be replaced if the rubber grommet is damaged.
   • Lubricate the ball socket lightly with Polycarbamide Grease G 052 142 A2 before installing.
   • Make sure the rubber grommet on the transmission side is not twisted when installing.
   • Adjusting, refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
     • Perform "Guided Functions" using the Vehicle Diagnostic Tester after adjusting the selector lever cable, refer to TRANSMISSION GUIDED FUNCTIONS .
5. Selector Lever
6. Clip
   • Lock nut 13 Nm depending on the version
   • For attaching the selector lever cable to the cable bracket
7. Cable Mounting Bracket
8. Bolt
   • 8 Nm
9. Bolt
   • 8 Nm
