Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the radiator grille from the bumper cover. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .

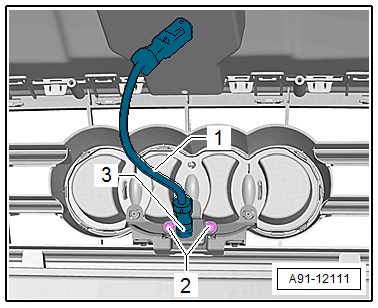

-- Remove the screws -2- on the Front Peripheral Camera -R243- -3-.
-- Remove the Front Peripheral Camera -R243- -3- from the bumper cover.
-- Release and disconnect the wire -1- from the Front Peripheral Camera -R243- -3-.
