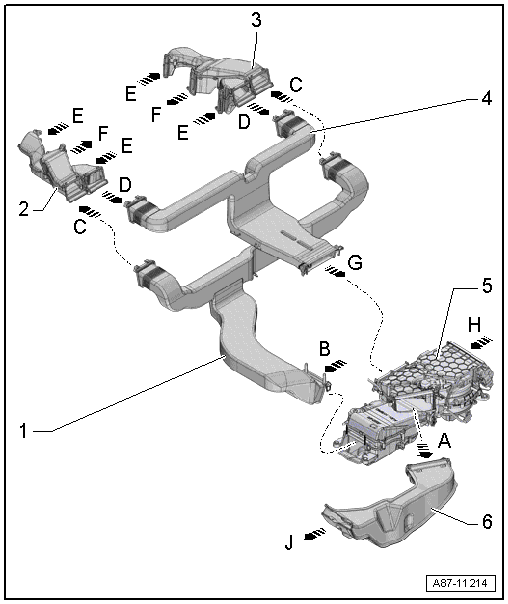

Air Intake And Outlet Openings
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- A - To Rear Outlet Air Guide
- B - To Air Inlet Guide
- For the drive battery
- C - To Air Guide for the Drive Battery
- D - To the Front Air Discharge Guide
- Air discharge from the drive battery
- E - To Air Guide for the Drive Battery
- Air discharge from the drive battery
- F - To Drive Battery
- G - To Battery Cooling Module
- H - Air Inlet from the Area Underneath the Luggage Compartment Base Plate
- J - To Left Forced Air Extraction
- Overview. Refer to COMPONENT LOCATION OVERVIEW - REAR COMPONENTS OUTSIDE OF PASSENGER COMPARTMENT .
- 1 - Air Guide Inlet
- For the drive battery
- 2 - Left Air Guide
- To the air inlet guide and discharge guide
- 3 - Right Air Guide
- To the air inlet guide and discharge guide
- 4 - Front Air Discharge Guide
- For the drive battery
- 5 - Battery Cooling Module
- 6 - Rear Air Discharge Guide
- From the battery cooling module
