Battery Cooling Module Condensation Water Drain, Checking: Checking
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING .
-- Bring the battery cooling module in the service position. Refer to BATTERY COOLING MODULE, BRINGING INTO SERVICE POSITION .

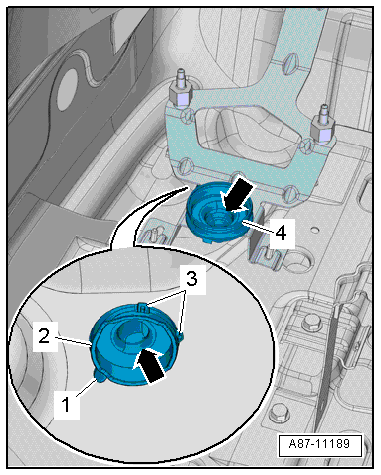

-- Inspect the condensation water drain -4- for debris -arrows- and that it has been installed correctly.
- The retaining tab -1- on the plastic ring -2- must face outward.
- The tabs -3- must be correctly engaged.
Restart High Voltage System
-- Turn on the ignition.
-- After installing, check and, if necessary, erase the displayed faults in the Diagnostic Trouble Code (DTC) memory for the Climatronic Control Module -J255- control head and the Battery Regulation Control Module -J840-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
