Battery Cooling Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2018 Audi A7 Quattro, 2017 Audi S7, and 2017 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Discharge the refrigerant circuit. Refer to Refrigerant Circuit, Discharging . .
-- Remove the inlet air guide for the traction battery. Refer to Traction Battery -A2- INLET AIR GUIDE, REMOVING AND INSTALLING .

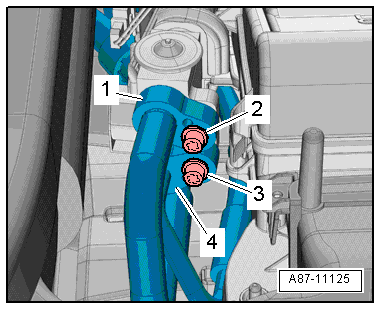

-- Remove the bolt -2- and disconnect the refrigerant line -1-.
-- Remove the bolt -3- and remove the refrigerant line -4-.
-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS6122 .

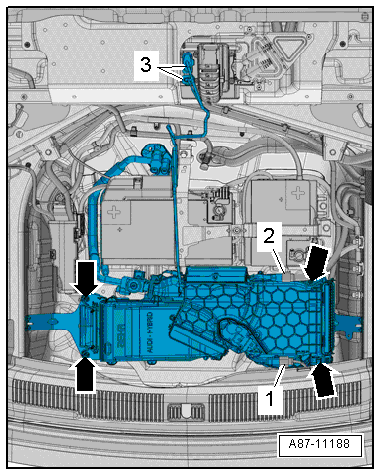

-- Disconnect and free up the connectors -1, 2 and 3-.
-- Remove the nuts -arrows- and remove the battery cooling module.
