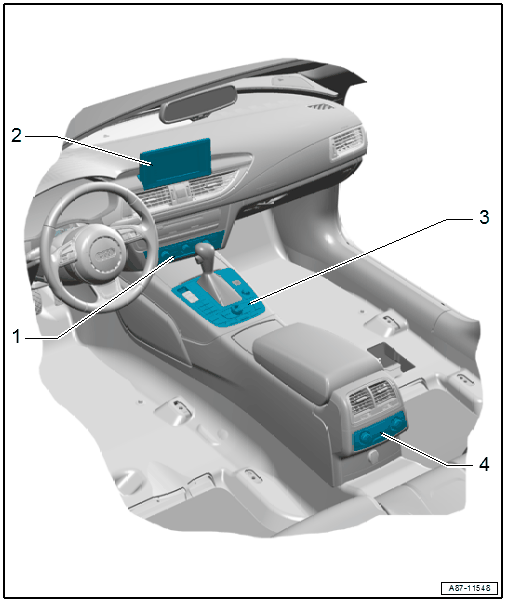

Component Location Overview - Display Control Head
- A/C Display Control Head
- There are different versions.
- Overview. Refer to OVERVIEW - DISPLAY AND CONTROL HEAD .
- Removing and installing. Refer to Climatronic Control Module -J255-, REMOVING AND INSTALLING .NOTE:
Depending on the Audi A6 e-tron version, the measured value for the Evaporator Vent Temperature Sensor -G263- can be evaluated by the Climatronic Control Module -J255- control head (as on all other vehicles of this model line) or by the Thermal Management Control Module -J1024-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and refer to the Appropriate Wiring Diagram.
If the measured value is evaluated by the Thermal Management Control Module -J1024- on the Audi A6 e-tron (and is transmitted via the data bus to the Climatronic Control Module -J255-), there is a different version of the Climatronic Control Module -J255- installed. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and refer to the Parts information.
- Front Information Display Control Head -J685-
- Multi Media Interface (MMI) Display
- There are different versions.
- Certain selected functions (and various auxiliary functions for the A/C system) are displayed via the MMI display on the Climatronic Control Module -J255- control head. Refer to Infotainment/MMI Operating Instructions.
- Multimedia System Control Head -E380-
- Different version.
- So that the different A/C system functions can be selected and displayed on the Multi Media Interface (MMI) display, the correct version of the Climatronic Control Module -J255- control head must installed, coded, and adapted.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Rear A/C Display Control Head -E265-
- Overview. Refer to OVERVIEW - DISPLAY AND CONTROL HEAD .
- Removing and installing. Refer to Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING .
