External Audio Source Connection 2 -R321-, REMOVING AND INSTALLING: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

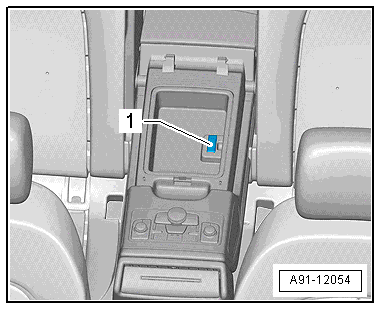

The External Audio Source Connection 2 -R321- -1- is located in the rear center armrest storage compartment.
The External Audio Source Connection 2 -R321- is connected directly to the Information Electronics Control Module 2 -J829-.
Various external audio sources can be connected to the External Audio Source Connection 2 -R321- :
- iPod
- MP3 player
- USB Stick
Suitable adapter cables are needed. Refer to the Owner's Manual.
Fault finding is performed via "Guided Fault Finding" on the Vehicle Diagnostic Tester.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
