Overview - Data Bus On Board Diagnostic Interface

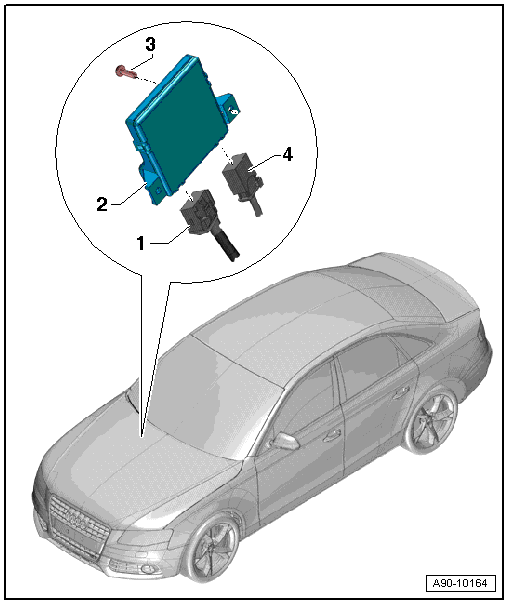

Fig 1: Data Bus On Board Diagnostic Interface Overview

Courtesy of AUDI OF AMERICA, LLC

1. Connector
   • For Data Bus On Board Diagnostic Interface -J533-
2. Data Bus On Board Diagnostic Interface -J533-
   • Removing and installing. Refer to Data Bus On Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
3. Screw
   • 3 Nm
4. Fiber Optic Cable Connector
   • Seal with Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9
