Access/Start Control Module Connector End View (J518, T20e, T3a)

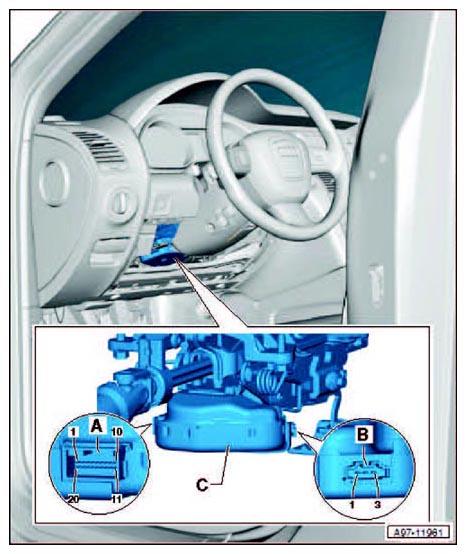

Fig 1: Access/Start Control Module Connector End View (J518, T20e, T3a)

Courtesy of AUDI OF AMERICA, LLC

A	20-Pin Connector -T20e-, black
B	3-Pin Connector -T3a-, black
C	Access/Start Control Module -J518-
