NOx Sensor Control Module 2 Connector End View (J881, T5e)

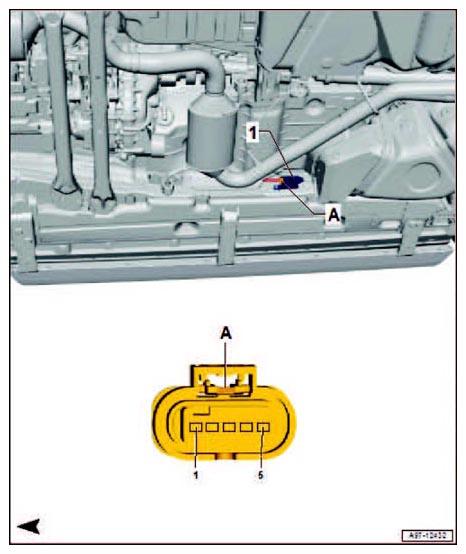

Fig 1: NOx Sensor Control Module 2 Connector End View (J881, T5e)

Courtesy of AUDI OF AMERICA, LLC

1	NOx sensor control module 2 -J881-
A	5-Pin Connector -T5e-

T5d	Designation
1	Terminal 30
2	Terminal 31
3	CAN-Bus, Low
4	CAN-Bus, High
5	Coding
