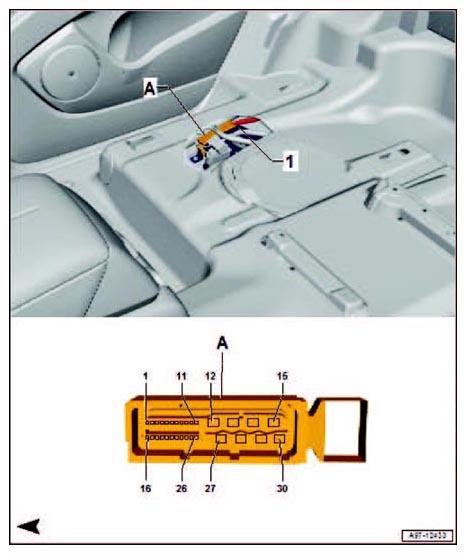

Reducing Agent Metering System Control Module Connector End View (J880, T30)
| 1 | Reducing Agent Metering System Control Module -J880- |
| A | 30-Pin Connector -T30- |
| T30 | Designation |
|---|---|
| 1 | Not used |
| 2 | Power supply sensor |
| 3 | Not used |
| 4 | Not used |
| 5 | Not used |
| 6 | Not used |
| 7 | Not used |
| 8 | Heating command 1 |
| 9 | Heating command 2 |
| 10 | 5V sensor |
| 11 | Sensor Ground |
| 12 | Not used |
| 13 | Not used |
| 14 | Tank heater |
| 15 | Line heater |
| 16 | Sensor Ground |
| 17 | Pump heater |
| 18 | Terminal 31 |
| 19 | Filling level signal |
| 20 | Sensor Ground |
| 21 | Not used |
| 22 | Diagnosis, heater 2 |
| 23 | Not used |
| 24 | Diagnosis, heater 1 |
| 25 | Transfer pump command |
| 26 | Power supply for transfer pump |
| 27 | Not used |
| 28 | Not used |
| 29 | Not used |
| 30 | Not used |
