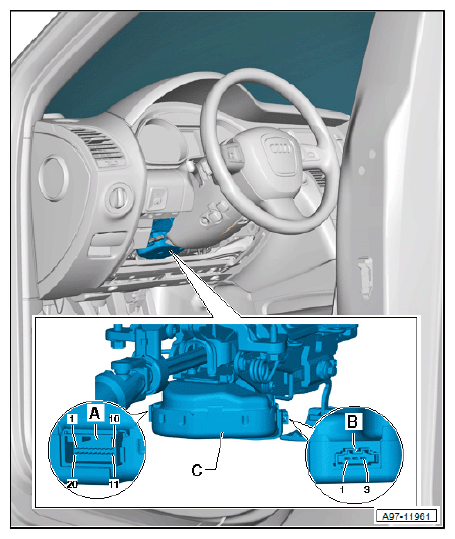

Access/Start Control Module -J518-

Component Location

On Steering Column.

1. 20-Pin Connector -T20E-, Black
2. 3-Pin Connector -T3A-, Black
3. Access/Start Control Module -J518-

Courtesy of AUDI OF AMERICA, LLC
