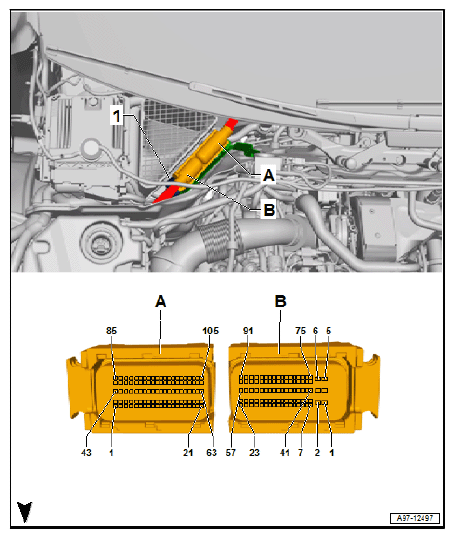

Engine Control Module (ECM) 2 -J624- With 196-Pin Connector

Component Location

In Plenum Chamber, Right -1-

1. 1  - Engine Control Module (ECM) -J624-
2. 105-Pin Connector -T105-, Black
3. 91-Pin Connector -T91-, Black

Courtesy of AUDI OF AMERICA, LLC
