Wiper Motor Control Module -J400-

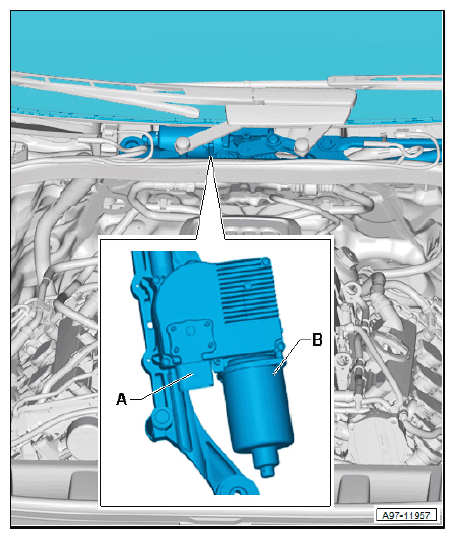

Component Location

In Plenum Chamber.

1. 4-Pin Connector -T4-, black
2. Wiper Motor Control Module -J400-

Courtesy of AUDI OF AMERICA, LLC
